Racking and storage systems
Seven racking families covering everything from a five shelf boltless unit to a high bay VNA installation.
Racking systems
Choose by what you store, not by what looks familiar
Axial spacing, beam profile and stile type all follow from the weight, length and turnover of your goods. Here is the range we build.

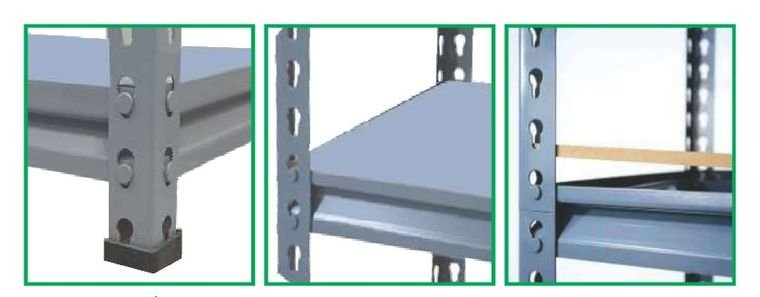

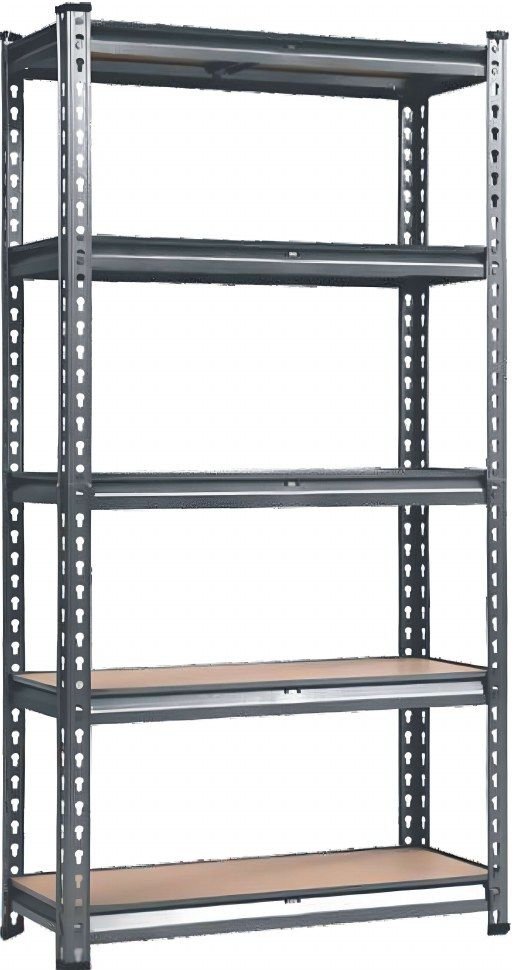

Boltless rack
No nut and bolt fitting. MDF laminated shelf, powder coated finish, 100 kg per shelf.

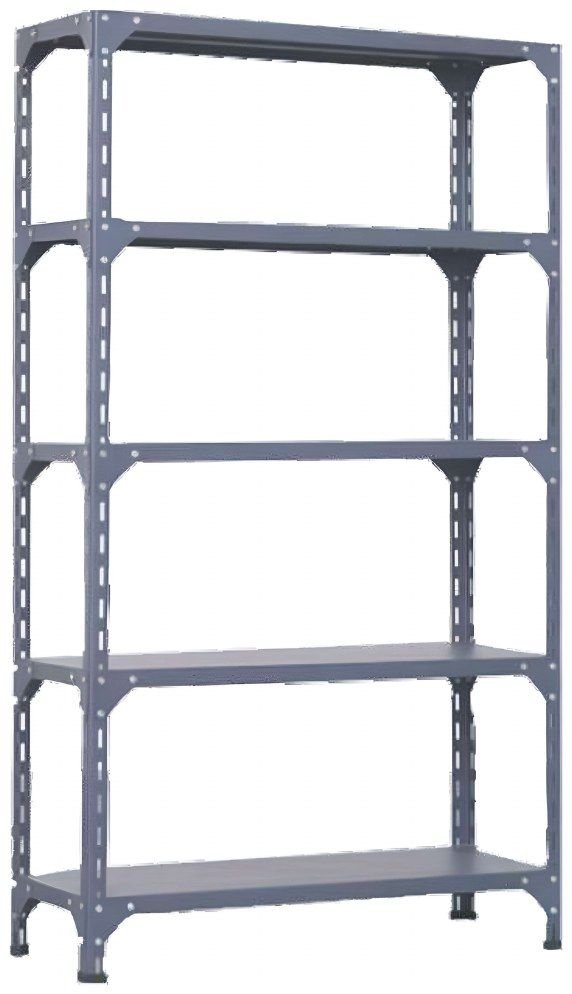

Slotted angle rack
Adjustable shelves with nut and bolt fitting. MS and GI shelves, 100 kg per shelf.
Warehouse bulk rack
Step box beams and upright frames with reinforced, GI, powder coated or MDF shelves.
Warehouse pallet rack
Selective pallet racking with beam safety locks, support bars and wire or wooden decking.

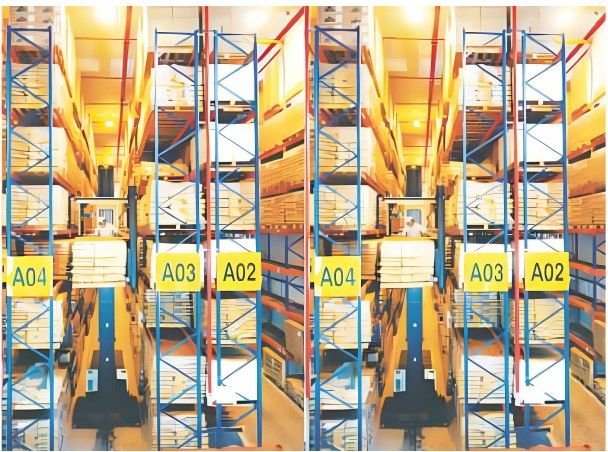

VNA pallet racking
High density storage with full accessibility, matched to a guided narrow aisle truck.

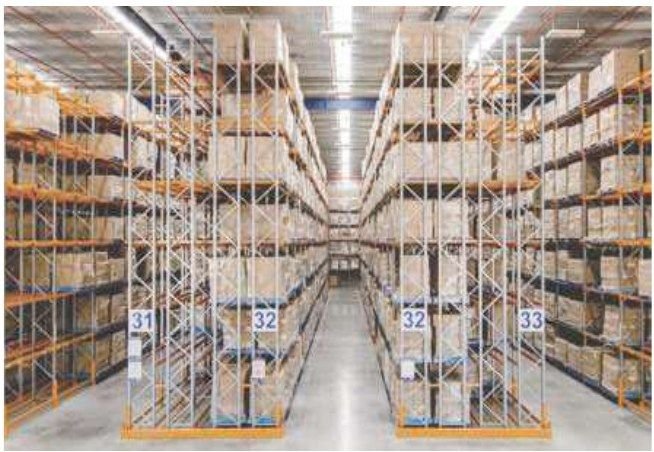

Double deep racking
Two pallets deep in a single entry rack, four in a double entry rack.
Boltless and slotted angle sizes
Both ranges are supplied in a fixed size matrix, powder coated, rated at 100 kg per shelf.
| System | Depth (in) | Width (in) | Height (in) |
|---|---|---|---|
| Boltless rack | 12, 16, 24 | 36, 48 | 72 |
| Slotted angle rack | 12, 18, 24 | 36, 48 | 72 |
Beam and upright sections
| Component | Sections available (mm) |
|---|---|
| Upright section | 110, 96, 90, 82, 60 |
| Step box beam | 70, 100, 120, 140, 150 |
| Square box beam | 75, 100, 125, 150, 200 |
| Couple box beam | Single wall, double wall |
Components
The parts that make a rack safe
Supplied and fitted as part of the system rather than sold separately after an incident.

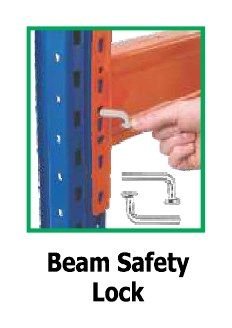

Beam safety lock
Pallet support bar
Pallet safety frame

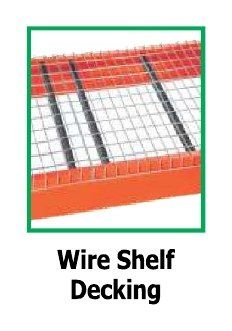

Wire shelf decking
Wooden decking

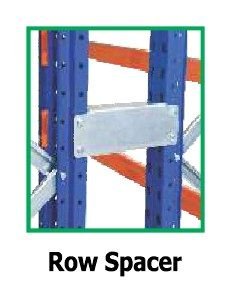

Row spacer
Upright foot plate
Upright front safety guard

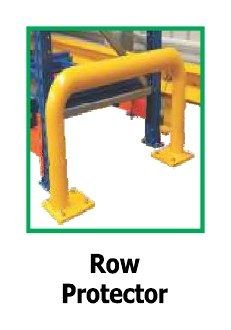

Row protector

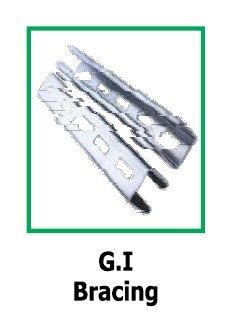

GI bracing
Magnetic tag holder
GI hardware
Cantilever racking for long goods
Bars, pipes, plates and profiles do not belong on a pallet rack. Cantilever stiles and profiles are made from high strength hot formed IPE sections, and the racking can be any length, single or double sided.
- Axial spacing is set by the bending characteristics and length of the stored goods.
- Goods must not overhang by more than half the axial spacing.
- Storage level heights fix the number of arms per stile.
- Load per arm is the level weight divided by the number of stiles.
- Two or more bays are fitted with two cross braces.
- Bays up to 3000 mm need two horizontal ties; 3500 mm and above need three.
Where these systems are working
The same components are configured very differently depending on the industry.

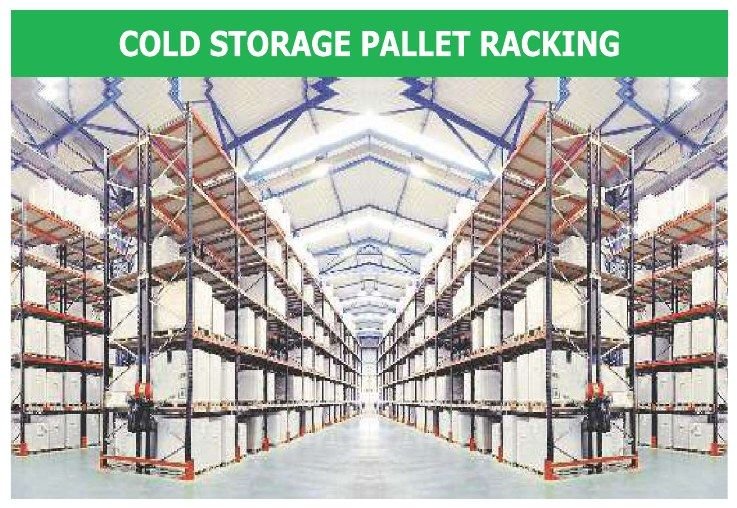

Cold storage
Finished goods

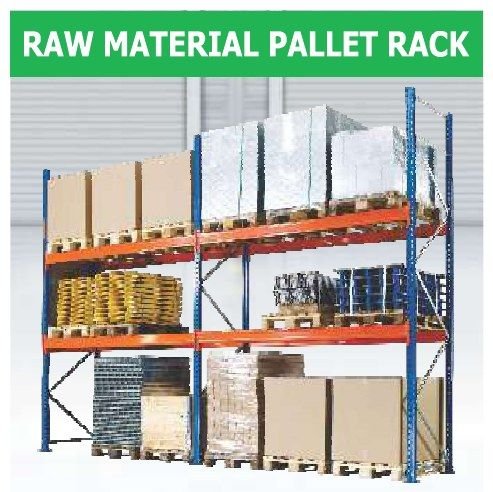

Raw material
Gangway distribution
Send us your layout
Floor size, roof height, pallet weight and handling equipment is all we need to size the system.
